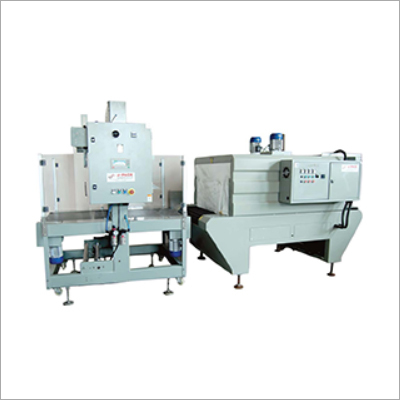

Shrink Tunnel Machine

Product Description

Shrink Tunnel Machine we offer is used for stretch film wrapping. This is used wrapping coil, non-woven, rubber product, paper roils, and other materials. The said machine assists in labor reduction and automates the process of attaching, pressing and film detachment. Shrink Tunnel Machine, is offered with automatic temperature variation. It allows for convenient operation as it has variable speed live-roller conveyor which can be adjusted, as per the need. Attachment with certain materials become with this machine by applying heat.

Shrink Tunnel Machine

Window Size: 450X250MM

Tunnel Length: 1000mm

Working Plate Height (on stand): 800mm

Packing Speed: 20 pkt/min

Film Type: POF/PE/PVC

VFD, Contactor & switches Schneider make

Proximity Switch P & F Make

Temperature Controller, relay are omron

make, Motor Meiwa make

Dimension: 1320mm(L)X 760MM(W) X

1480MM(H)

Machine Weight: 300 kg aprox

Total dimension: 1320mm(L) X

760mm(W)X 1480MM(H)

Total Machine Weight: 350 kg Aprox

Power Supply: 380V, 3P, 50/60 HZ 14.5KW
